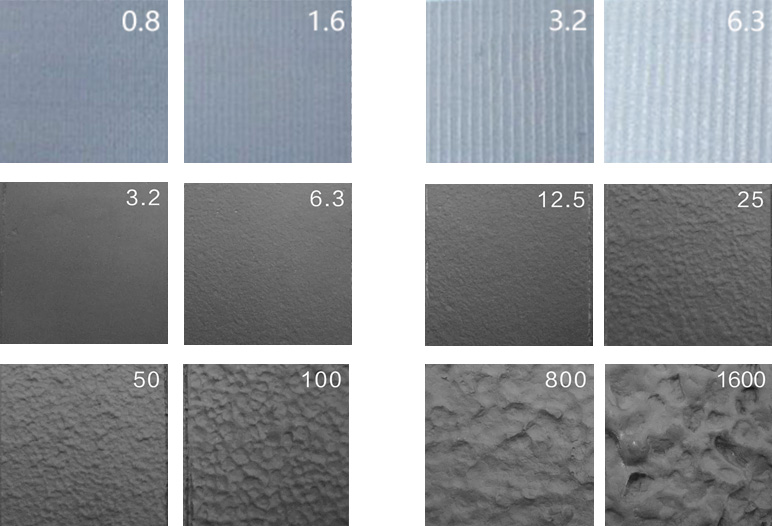

This standard is based on the casting surface roughness comparison sample block specified in (GB/T 15056-2017) to inspect the casting surface roughness plating, and serves as a reference for casting process and selection of casting surface roughness.
Tolerances and surface roughness need to be considered in conjunction with functional location; they cannot be determined uniformly across the entire part.
Standard forms are suitable for preliminary reference. What truly affects processing costs and assembly risks are the specific requirements for datum, mating surfaces, hole positions, threads, and functional dimensions.
Prioritize identifying critical dimensions related to assembly, sealing, positioning, transmission, or pressure bearing.
Unify design, processing, and testing standards to reduce accumulated errors and disputes.
Cast surfaces, machined surfaces, and mating surfaces should have a surface roughness that matches their function.
Clearly define the requirements for measuring tools, sampling ratios, dimensional reports, and special geometric tolerances.
