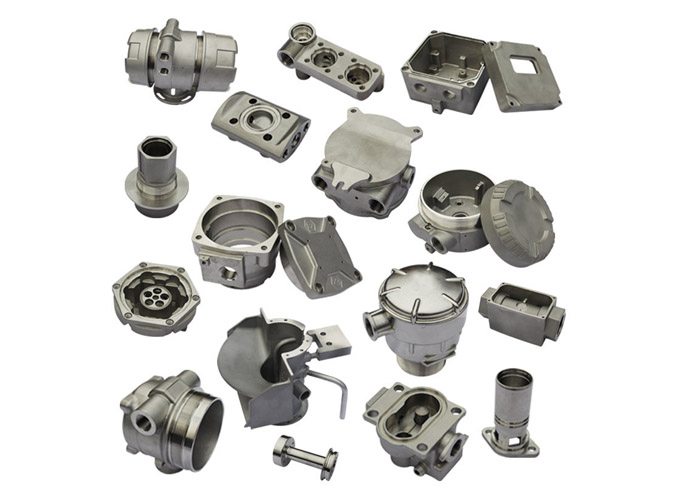

Stainless steel instrument housing and explosion-proof junction box | Precision casting and CNC machining

Stainless steel instrument housings and explosion-proof junction boxes are primarily designed for custom-made applications in industrial instruments, electrical equipment, and outdoor protective connections. Product pricing cannot be determined solely by appearance or weight; it also requires a comprehensive evaluation considering material standards, batch quantity, critical dimensions, tolerances, surface treatment, and the actual operating environment.

Structural and process evaluation of stainless steel instrument housing and explosion-proof junction box

These types of parts typically require close attention to the housing cavity, cover seal, and multi-directional cable inlets. Silica sol is used.Investment CastingDuring the drawing review stage, the wall thickness transition, fillets, parting method, casting shrinkage compensation and machining allowance will be confirmed to deal with deformation, shrinkage cavities, air holes and subsequent clamping risks as much as possible in advance.

If the parts involve pressure resistance, corrosion resistance, food contact, high temperature, or continuous stress, please specify the medium, temperature, pressure, load, and applicable standards when requesting a quote. Common designations such as 304, 316, and 316L are only preliminary guidelines; formal production should adhere to the grade, chemical composition, and acceptance requirements specified in the drawings.

Compatible CNC post-processing

After the casting blank is cleaned, threaded interfaces, sealing surfaces, mounting holes, and assembly dimensions can be arranged according to the drawings. For assemblies, datum, critical tolerances, surface roughness, and fit relationships should be marked in advance. For projects requiring batch delivery, mass production can begin after the first piece is confirmed to reduce dimensional discrepancies.

Inspection and Delivery Key Points

• Material:Confirm the furnace batch and material requirements according to the agreed grade, and communicate the spectrum or material report if necessary.
• size:The key areas to check are the hole positions, end faces, threads, mating surfaces, and critical dimensions marked on the drawings.
• Appearance:Check for cracks, missing material, obvious pinholes, deformation, and cleaning condition.
• Specialized testing:For pressure-bearing, sealing, or critical load-bearing components, non-destructive testing and performance verification can be negotiated on a project-by-project basis.

What information should be provided in the inquiry?

We recommend providing PDF drawings, CAD or STEP models, material grade, purchase quantity, key tolerances, surface treatment, and expected delivery date. If the information is incomplete, you can also send photos of the actual product, its intended use, and key dimensions so that our process engineers can determine if it is suitable for precision casting.
