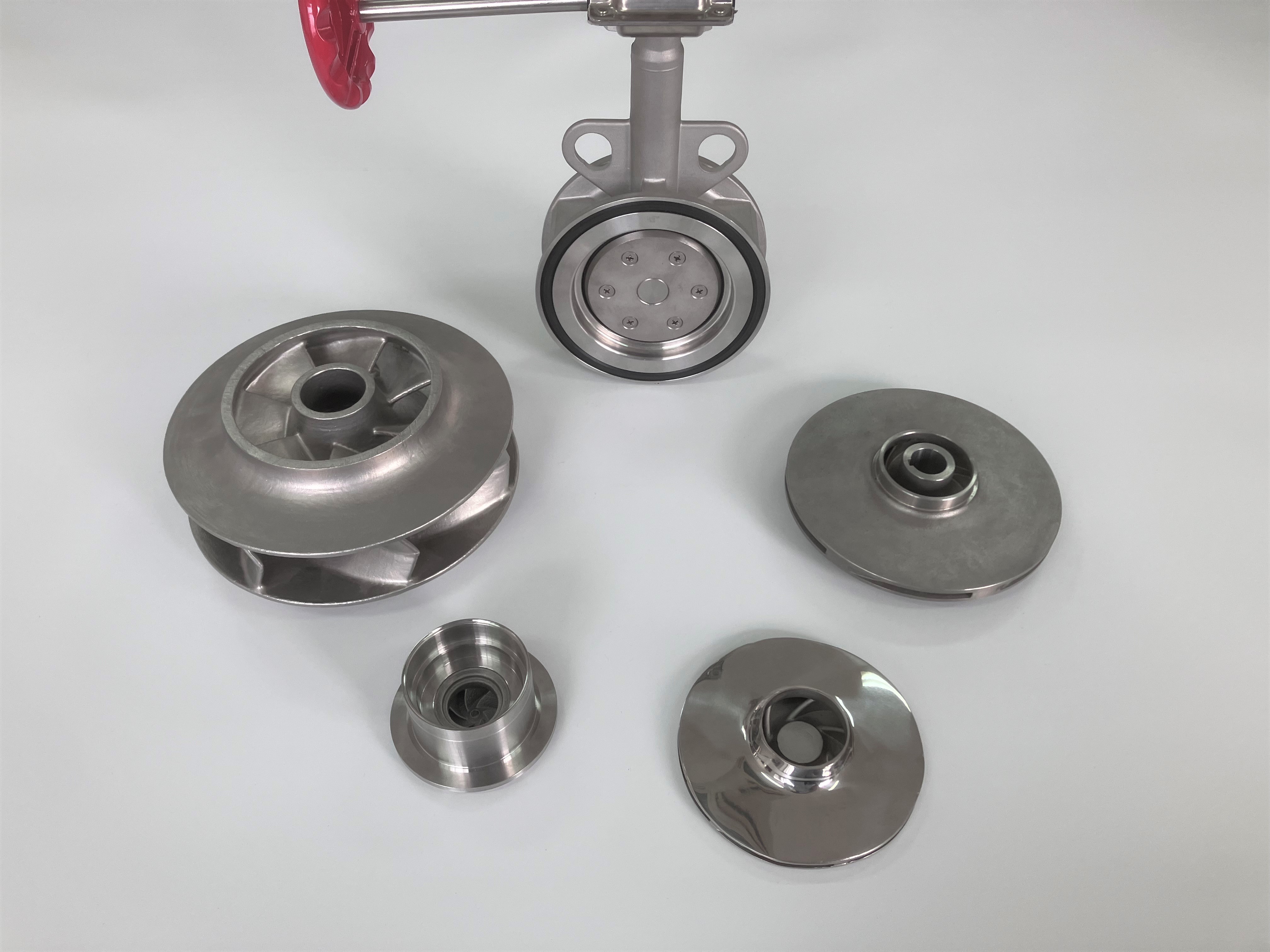

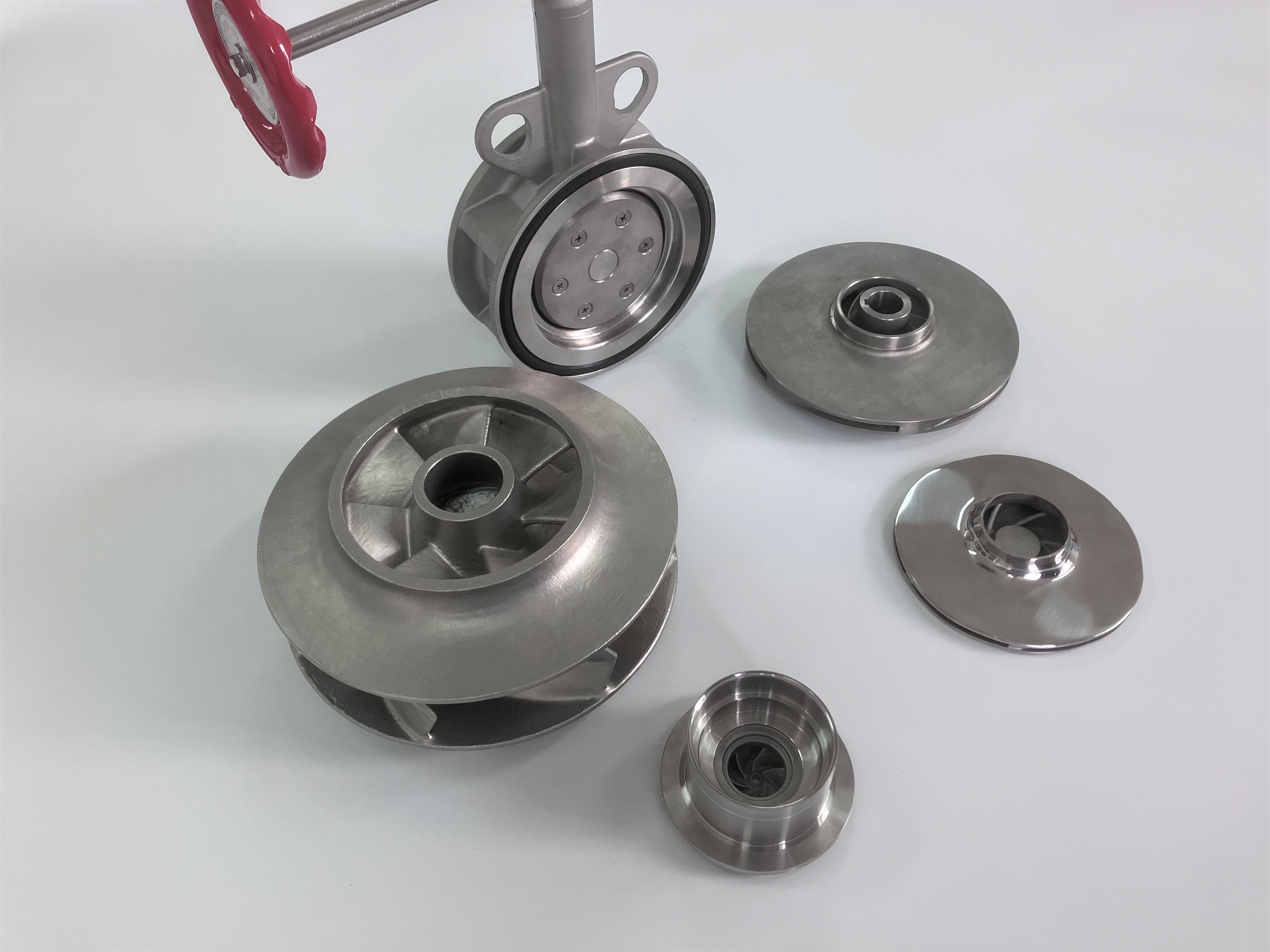

Precision casting and CNC machining of valve and pump impeller parts

Forging the core of power, precision machining achieves excellence: Valves and pumpsimpellerOne-stop precision manufacturing expert

In the vast world of industrial fluid transport and control, valves and pumps play crucial roles as the "heart" and "arteries." The core components that determine their operational efficiency, stability, and lifespan are undoubtedly the internal valve body, valve core, and the fluid-generating pump.ImpellerWe focus on this core area, providing services from...Precision casting到Multi-axis CNC precision machiningOur end-to-end, one-stop production solutions enable global high-end equipment manufacturers to create powerful, precise, and reliable power cores.

Impellers and valve fittings: More than just parts, they are works of art in fluid dynamics.

The curvature of every curved surface and the angle of every blade in a high-performance impeller directly affect the pump's head, flow rate, and energy efficiency ratio. Similarly, the smoothness of the internal flow channels and the precision of the sealing surface in a precision valve fitting determine the control accuracy and safety of the entire pipeline system.

We understand that these seemingly ordinary metal components actually embody ingenious designs based on fluid dynamics. Therefore, we employ state-of-the-art manufacturing processes to perfectly transform the designer's blueprint into a physical entity that combines strength and precision.

Phase 1:Precision casting (Precision Casting) — Shaping the Perfect "Gene"“

Excellence begins at its source. We employ the **lost-wax casting (investment casting) process** to give impellers and valve components a perfect initial shape and superior internal structure.

Our casting process:

3D Modeling and Mold Development: Based on your design drawings, our engineers conduct a manufacturability analysis (DFM) and create a high-precision wax mold pressing die.
Suppression and Tree Grouping: High-temperature liquid wax is injected into a mold to obtain a smooth and precise wax model. The individual wax models are then assembled into a "wax tree" to prepare for mass production.
Shell preparation and dewaxing: The wax mold is repeatedly soaked in ceramic slurry and then evenly coated with sand to form a sturdy ceramic shell. Afterward, high-temperature steam is used to melt and remove the wax mold, creating a cavity that perfectly matches the structure of the part.
Alloy smelting and casting: Based on the requirements of the working conditions, we precisely proportion various high-performance alloys (such as austenitic/duplex stainless steel, wear-resistant/corrosion-resistant alloys, bronze, etc.), melt them in a vacuum or controlled atmosphere, and pour them into a sintered ceramic mold.
Cleaning and Quality Inspection: After the metal cools and solidifies, the casting is removed from the shell. Following processes such as cutting, sandblasting, and heat treatment, a dimensionally precise and dense blank is obtained. Simultaneously, methods such as spectral analysis, X-ray radiography (RT), and magnetic particle testing (MT) are used to ensure the blank is free of any internal defects.

Precision casting imparts its advantages to components:

Complex streamlined structure: Complex three-dimensional curved blades capable of being integrally molded into closed, semi-open, or open impellers.
Consistency in height dimensions: This reduces the machining allowance in subsequent processes, laying the foundation for CNC machining.
Excellent material properties: Heat treatment optimizes the crystal structure, thereby improving strength, hardness, and corrosion resistance.

Phase Two: CNC Machining – Sculpting Ultimate Precision

If casting gives the impeller "life," then CNC machining gives it "soul." This is especially true for complex free-form surface parts like impellers.5-axis CNC machining centerThis is the only way to achieve its ultimate performance.

Our CNC machining capabilities:

Five-axis linkage machining: Our machining center can perform complex surface machining at any angle in three-dimensional space. For areas that are difficult for traditional machine tools to reach, such as impeller channels and blade backs, it can be clamped and machined in one piece, perfectly replicating the design model and ensuring the absolute smoothness of the flow channels.
Dynamic equilibrium testing and correction: The high-speed rotation of the impeller requires extremely high balance. During and after the machining process, we conduct rigorous dynamic balance tests and perform micro-weight reduction through CNC precision cutting to control the imbalance to an ISO G2.5 or even higher precision level, eliminating vibration sources and extending bearing life.
Key dimensions and mating surface machining: The sealing surfaces, stem holes, flange connection surfaces, shaft holes, and keyways of valve fittings are machined with micron-level precision to ensure seamless assembly and zero leakage.
Ultra-high surface finish: By optimizing toolpaths and using high-speed cutting techniques, we can achieve extremely high surface roughness (Ra) requirements, reduce fluid resistance, improve pump efficiency, and prevent cavitation.

One-stop solution: seamless connection from casting to finished product

Choosing us means you get more than just parts; it means peace of mind and efficiency.

Deep integration of technologies: Our casting engineers and CNC programmers work closely together to optimize the structure from the design stage, preset the best machining allowance, and avoid manufacturing problems.
Shorten the supply chain: The elimination of the need for transfers between foundries and processing plants significantly shortens production cycles and reduces logistics costs and potential quality risks.
Unified quality standards: From the material composition of the castings to the geometric tolerances of the final product, all processes are completed under the same roof and within the same quality system, with clear responsibilities and consistent quality.
Maximizing cost-effectiveness: The integrated process reduces unnecessary waste, enabling us to offer you a more competitive overall cost.
